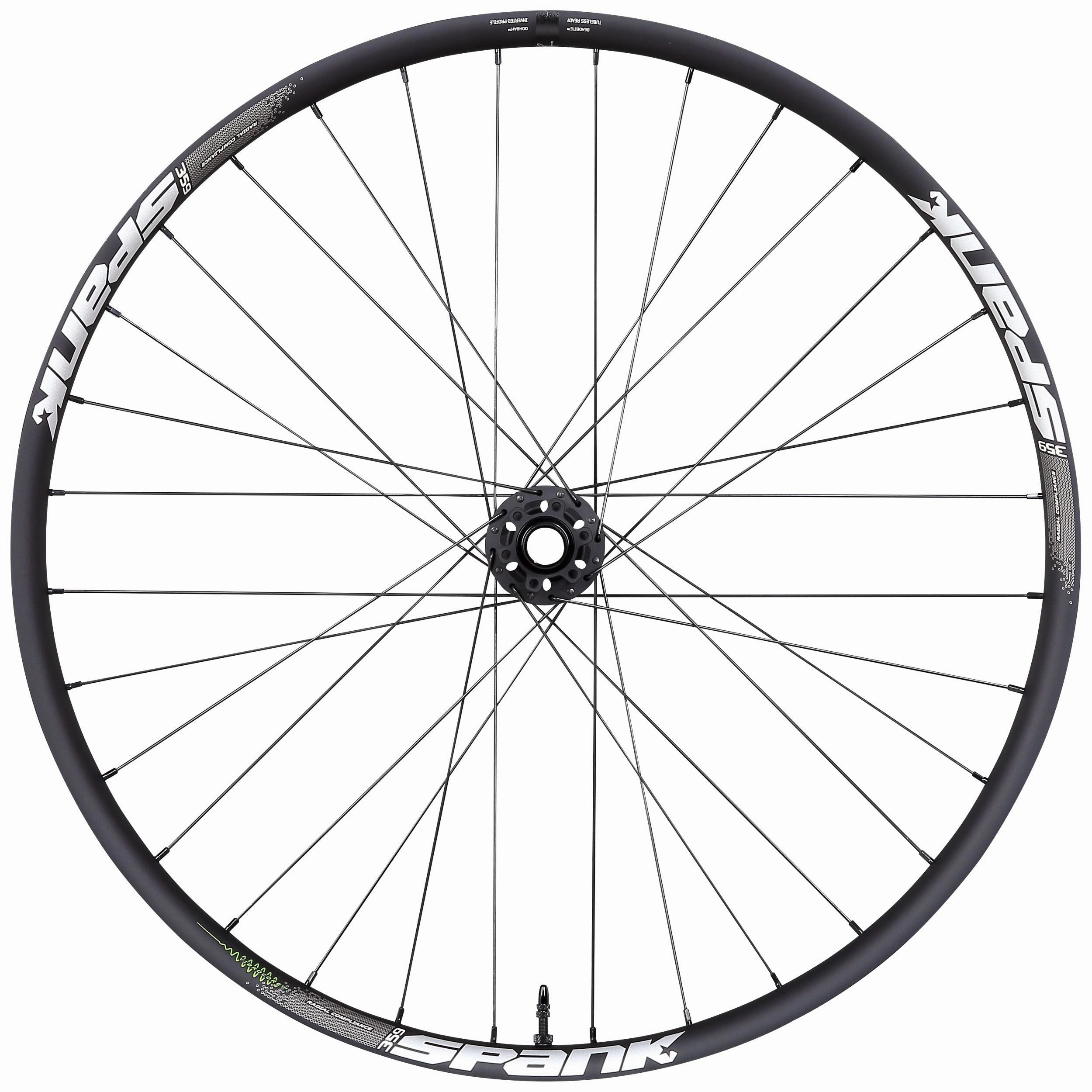

The low profile, radially compliant alloy rim injected with SPANK's award-winning Vibrocore to add torsional strength and lateral stiffness, offers a smooth and highly responsive ride feel. Hand-built to A-Class specifications, the 359 Vibrocore wheels with SPANK Hex Drive hub is the premium offer from the SPANK wheelhouse and is trusted by pros on the UCI DH World Cup circuit, as well as big mountain free-riders. This wheel is spec'd and built for the heavy hitters.
- Moderately low 19mm profile height and wide width balances the benefits of radial compliance with high lateral stiffness and predictable handling
- Radial Compliance improves traction over bumps and chatter while reducing negative feedback to the rider. Performance and comfort are improved.
- Vibrocore™ inner well, reduces the transmission of harmful vibration frequencies, meaning less vibration for the suspension and rider, also increasing the fatigue life of the rim
- 5mm inner width is extremely versatile, fitting tires from 2.0” to 2.6”, and even allowing size tire use without negative squaring off of tire profiles
- Bead Bite tubeless hooks enhance tubeless performance and tire security, even at lower pressures
REAR WHEELS TO PAIR WITH:
VARIANT SPECS
| HUB | HUB SPACING | BOOST | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 27.5" | HEX J TYPE | BOOST 15x110 | BOOST | 32H | BOOST 20X110 | 1004g | 560 | 584x30.5 | R-272 | L-270 |
| HEX J TYPE | 20x110 | - | 32H | 15x100 | 992g | 560 | 584x30.5 | R-272 | L-270 | |
| 29" | HEX J TYPE | BOOST 15x110 | BOOST | 32H | BOOST 20X110 | 1052g | 598 | 622x30.5 | R-292 | L-290 |
| HEX J TYPE | 20x110 | - | 32H | 15x100 | 1039g | 598 | 622x30.5 | R-292 | L-290 |
COMPATIBLE FRONT ADAPTERS
| Boost F15/20 | |
|---|---|
| F15/20 | |
| All Hex J-Type Front Hubs | |
| |
COMPATIBLE SERVICE KITS
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN | TRAIL | ENDURO | FREERIDE |
|---|---|---|---|
| ✔ | ✔ | ✔ | ✔ |
| DOWNHILL | GRAVEL | XC | E-BIKE |
| ✔ | - | - | * |
* Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as a separate purchase in HG, XD, and Microspline. (See )
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact | ✔ | ✔ | ✔ |
| Medium Impact | ✔ | ✔ | ✔ |
| Light impact | ✔ | ✔ | ✔ |
RIM SPECIFICATIONS
| HOLE COUNT: | 32 |
|---|---|
| INNER WIDTH (mm): | 30.5 |
| OUTER WIDTH (mm): | 35 |
| PROFILE HEIGHT: | 19 |
| TIRE FIT | 2.0" to 2.6" |
BUILD SPECIFICATIONS
| BUILD: | A-Class Handbuilt |
|---|---|

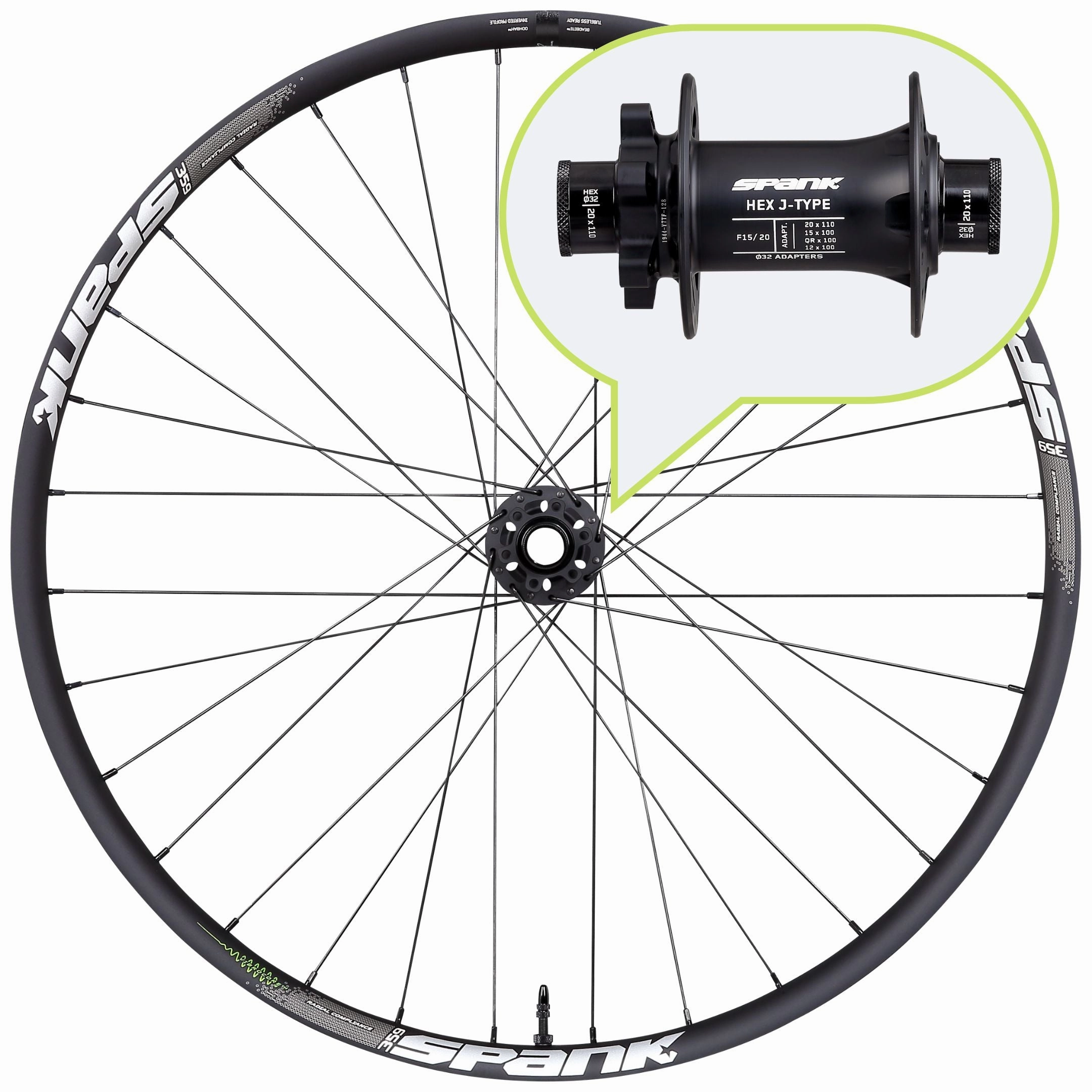

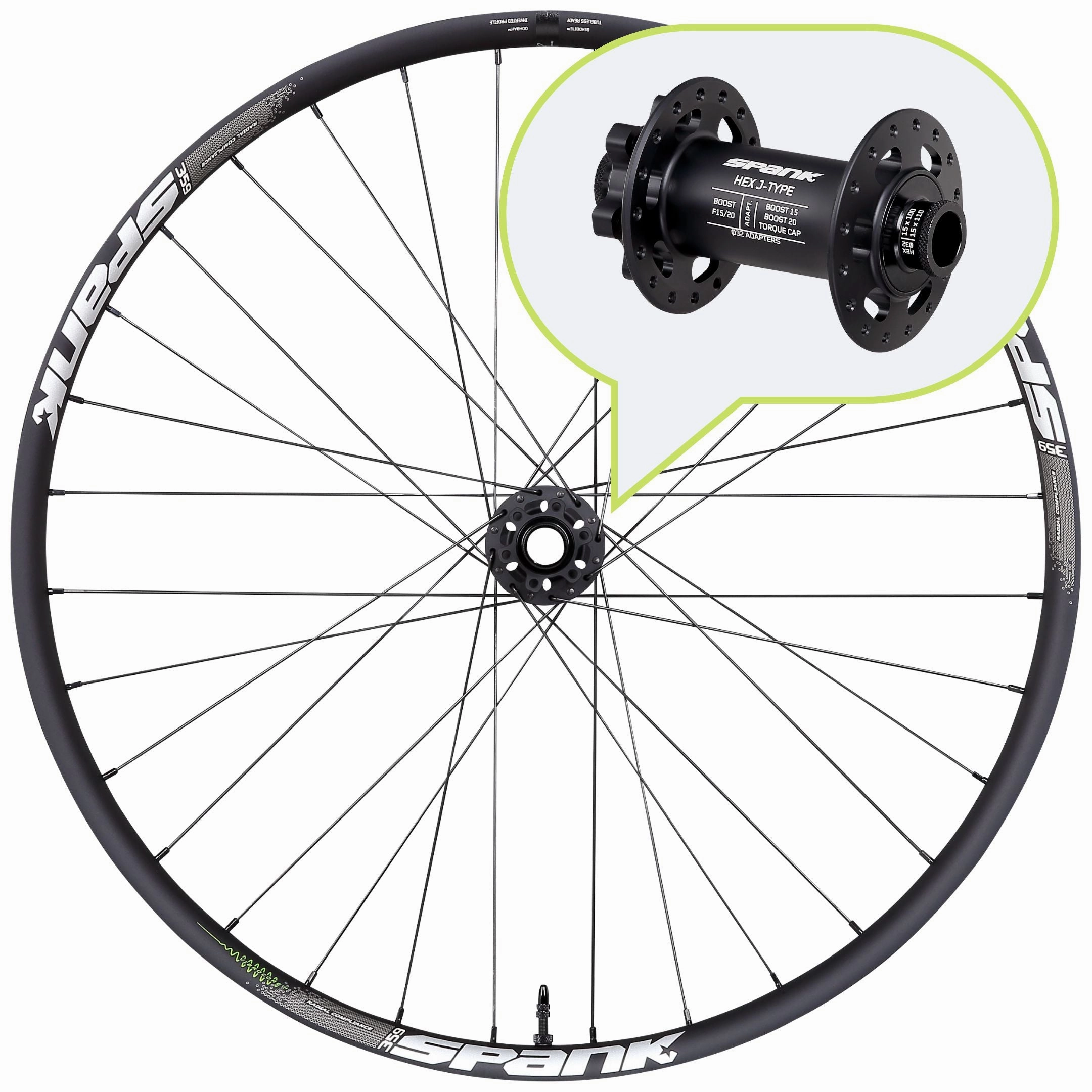

| HUB: | SPANK HEX J-TYPE |
| SPOKES: | J-Hook, triple-butted 2.2/1.8/2.0 |
| NIPPLES: | Brass external |
| LACING: | 3 cross lacing |
| VALVE: | F/V Presta |
| TUBELESS: | Tubeless taped & valved |
